Remote Control Mirror Switch: Inspection

Preparation tool:

Circuit tester

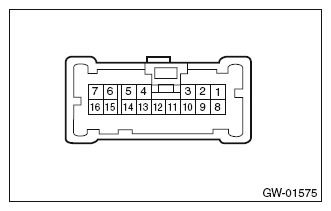

Fig 1: Remote Control Mirror Switch Connector End View

Courtesy of SUBARU OF AMERICA, INC.

• Changeover switch RH

  Terminal No.	Inspection conditions	Standard
  -	OFF	1 MΩ or more
  1 - 12 9 - 7	UP	Less than 1 Ω
  1 - 9 12 - 7	DOWN	Less than 1 Ω
  1 - 11 12 - 7	LEFT	Less than 1 Ω
  1 - 12 11 - 7	RIGHT	Less than 1 Ω

• Changeover switch LH

  Terminal No.	Inspection conditions	Standard
  -	OFF	1 MΩ or more
  1 - 14 8 - 7	UP	Less than 1 Ω
  1 - 8 14 - 7	DOWN	Less than 1 Ω
  1 - 10 14 - 7	LEFT	Less than 1 Ω
  1 - 14 10 - 7	RIGHT	Less than 1 Ω
