Remote Control Mirror Switch: Removal

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to BATTERY
2. Remove the trim panel - front door. Ref. to FRONT DOOR , REMOVAL, Door Trim.
3. Remove the panel - power window main switch. Ref. to REMOVAL , Power Window Control Switch.
4. Release the claws, and then remove the switch - door mirror from the panel - power window main switch.

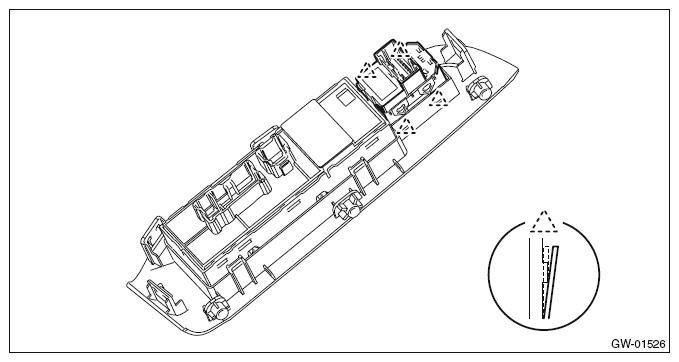

Fig 1: Identifying Power Window Main Switch Claws

Courtesy of SUBARU OF AMERICA, INC.
