Fuel Level Sensor: Installation

Install in the reverse order of removal.

CAUTION: Be sure to install the fuel level sensor harness to the clip first, then install the fuel pump harness. Otherwise, malfunction may occur.

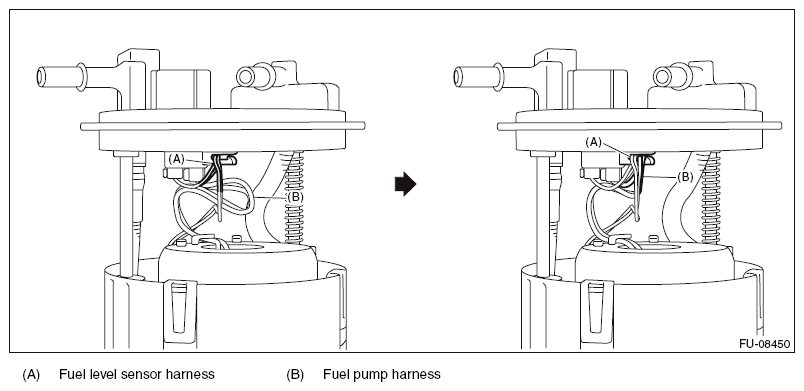

Fig 1: Identifying Fuel Level Sensor Harness And Fuel Pump Harness

Courtesy of SUBARU OF AMERICA, INC.
