Components With Torque Specifications

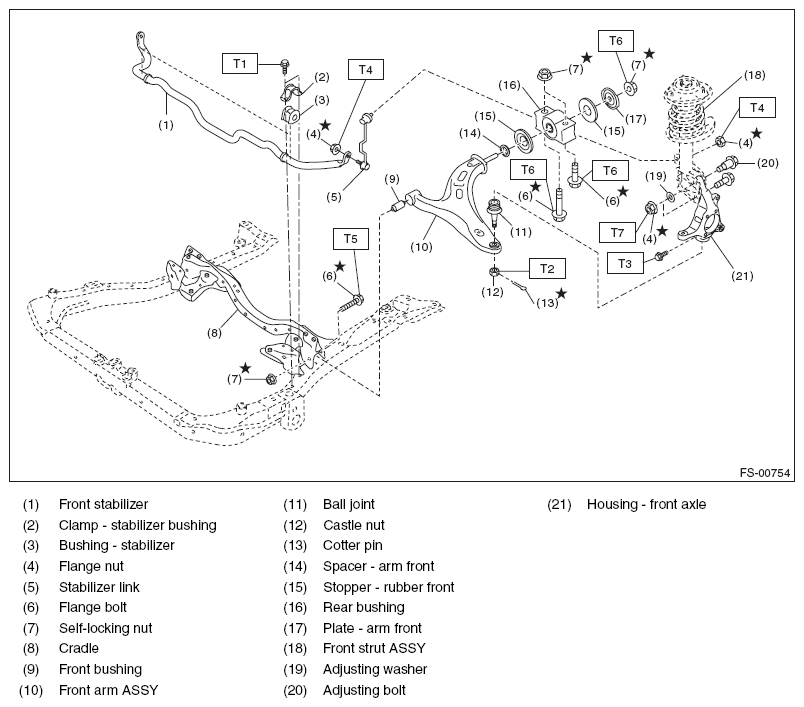

Fig 1: Exploded View Of Front Suspension Components Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 45 (4.6, 33.2)

T2: 60 (6.1, 44.3)

T3: 65 (6.6, 47.9)

T4: 90 (9.2, 66.4)

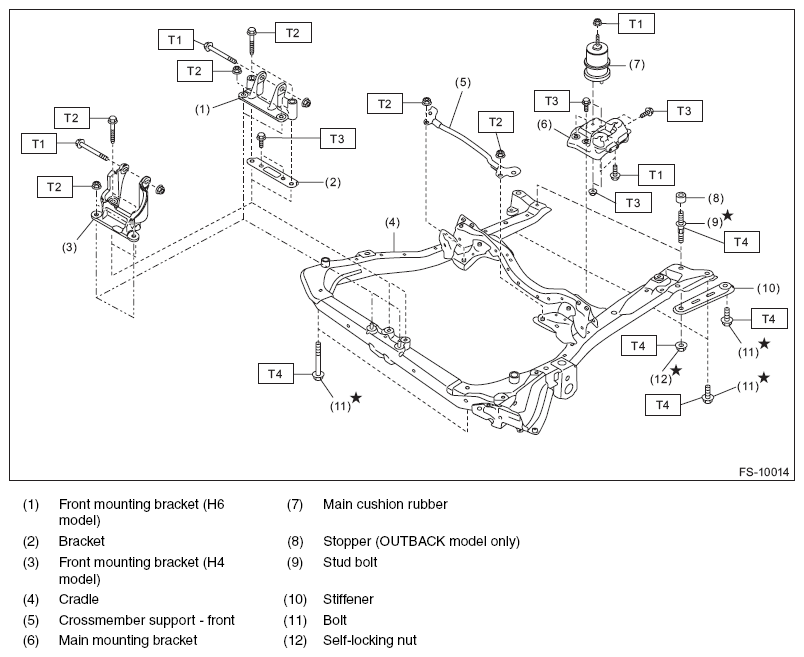

Fig 2: Exploded View Of Front Suspension Components Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 39 (4, 28.8)

T3: 50 (5.1, 36.9)

T4: 60 (6.1, 44.3)

T5: 95 (9.7, 70.1)

T6: 140 (14.3, 103.3)

T7: 155 (15.8, 114.3)

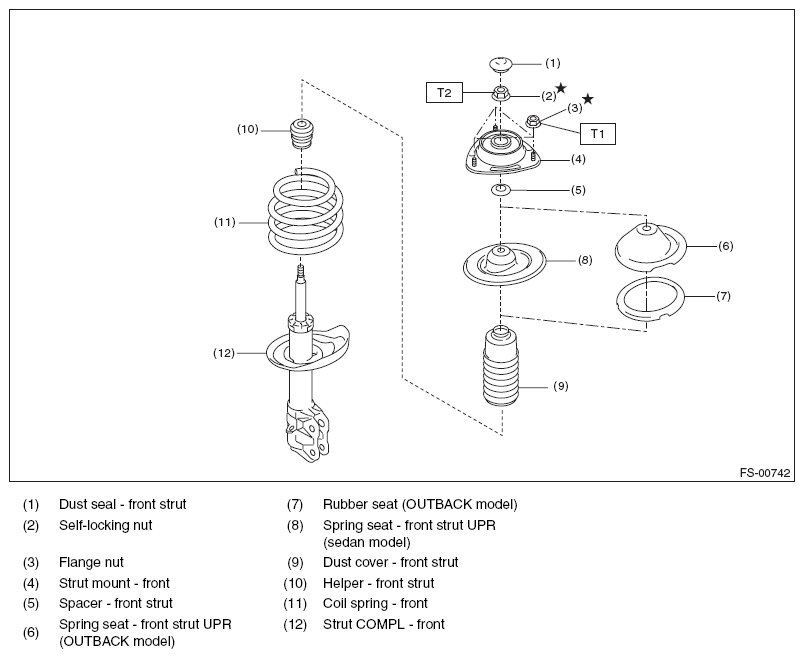

Fig 3: Exploded View Of Front Strut Components Location

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2, 14.8)

T2: 55 (5.6, 40.6)
