Engine Harness

Engine harness assembly diagram 1

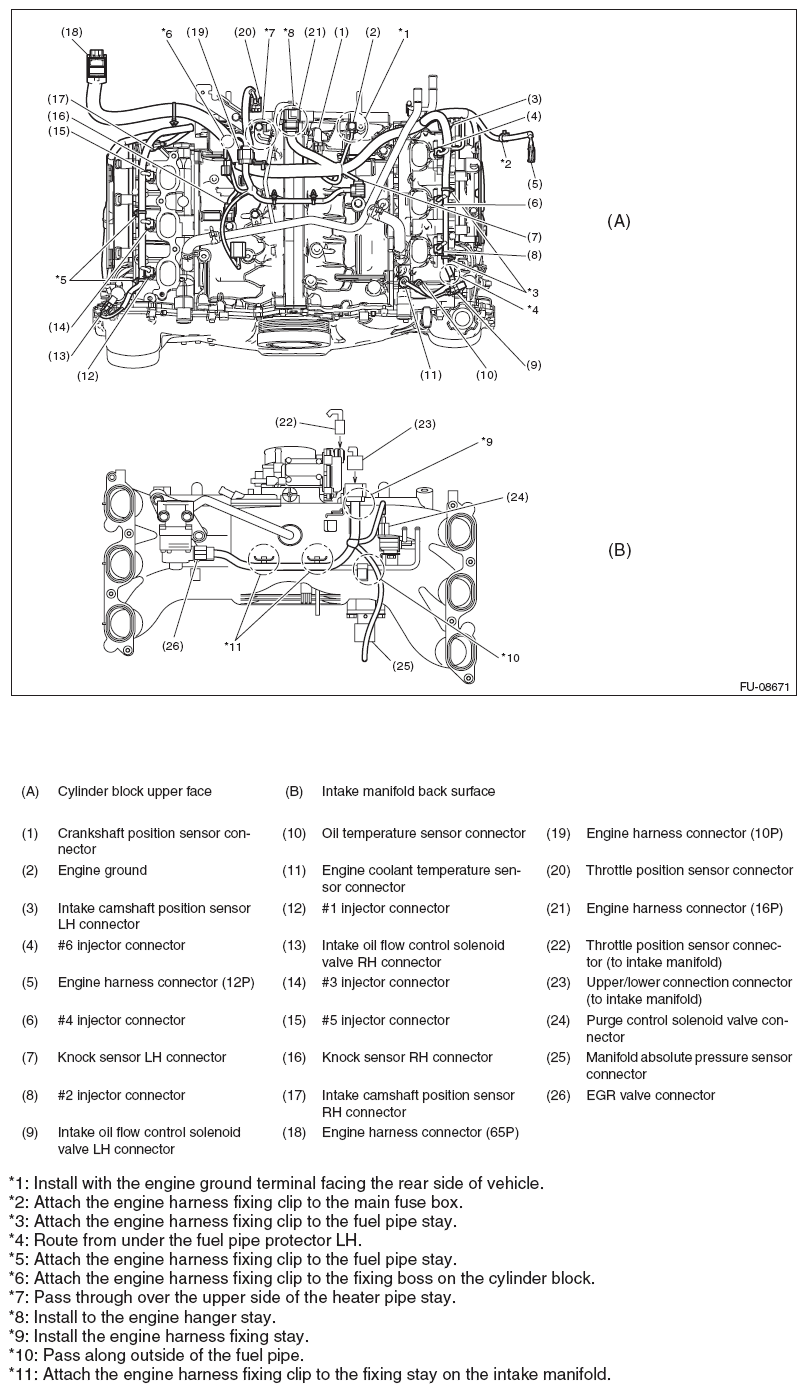

Fig 1: Engine Harness Assembly Diagram 1

Courtesy of SUBARU OF AMERICA, INC.

Engine harness assembly diagram 2

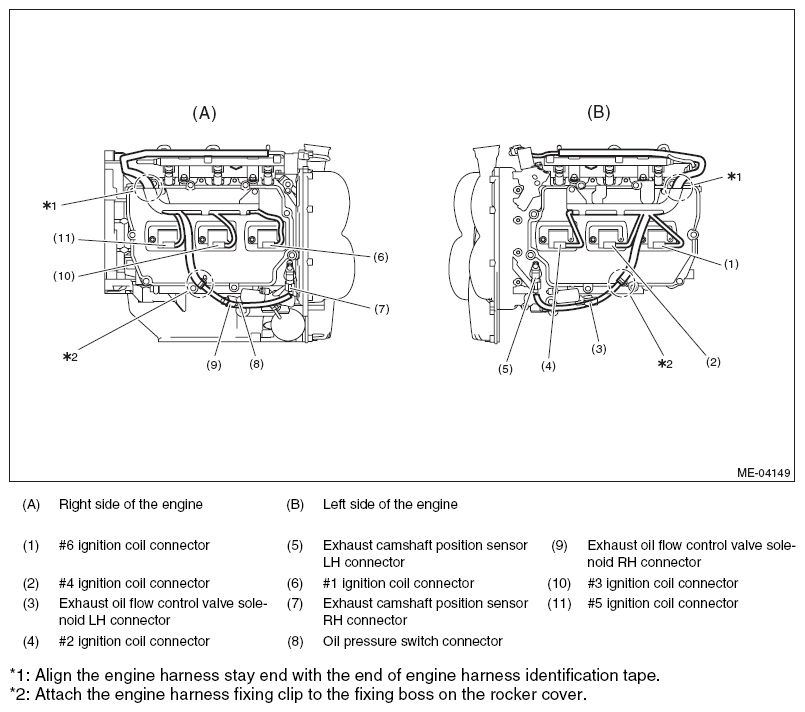

Fig 2: Engine Harness Assembly Diagram 2

Courtesy of SUBARU OF AMERICA, INC.
