Waveform 16

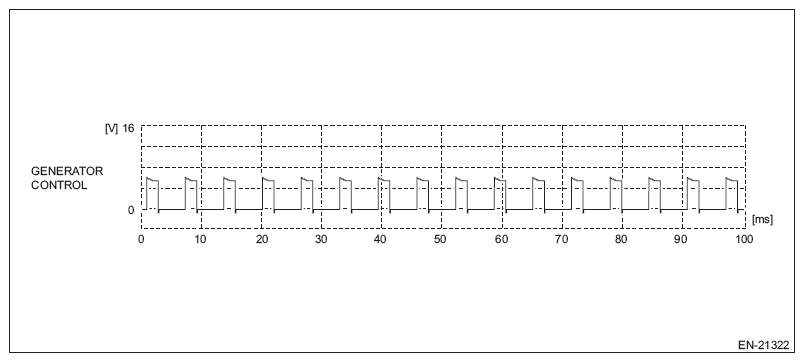

Fig 1: Waveform 16
G11586502Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Generator control (B134) No. 23 (+) - Engine ground 3 (E158) No. 63:
Measuring condition Idling status
