M/T Clutch System: Flywheel: Removal

  1. Remove the transmission assembly. <Ref. to REMOVAL (TY75) , Manual Transmission Assembly.> <Ref. to REMOVAL (TY85) , Manual Transmission Assembly.>
  2. Remove the clutch cover and clutch disc. <Ref. to REMOVAL , Clutch Disc and Cover.>
  3. Using the ST, remove the flywheel.

    ST 498497100 CRANKSHAFT STOPPER

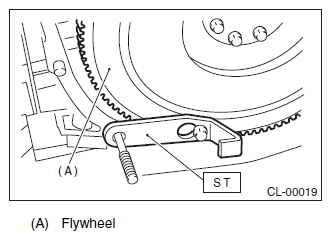

    Fig 1: Removing Flywheel Using ST
    G11578850Courtesy of SUBARU OF AMERICA, INC.
  4. Drive out the pilot bearing from the flywheel.
