Exploded View
Exploded View

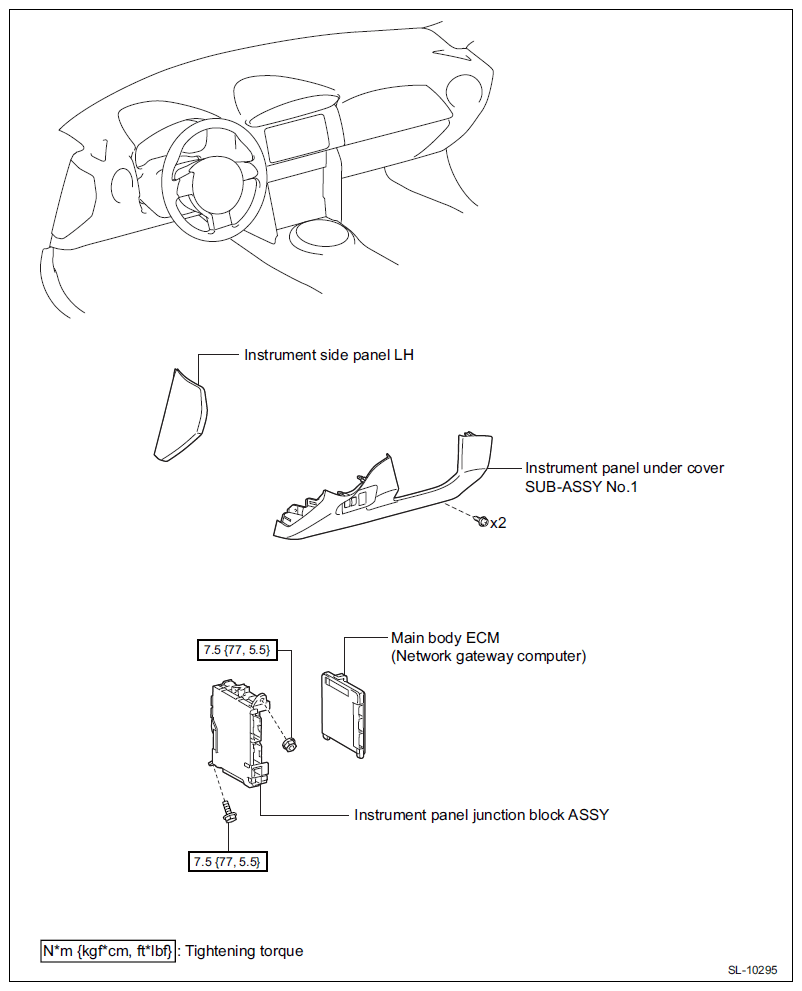

Fig 1: Main Body ECM Components With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
