Fuel Injector RH
- Replace the following parts with new ones. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Injector>REPLACEMENT .
- Fuel injector seal
- Slider washer
- Back-up ring
- O-ring seal
- Stopper ring
- Install the fuel injector holder to the fuel injector assembly.
- Align the protrusion of the fuel injector holder to the anti-rotation slot of the fuel injector pipe RH, and install the fuel injector straight to the fuel injector pipe RH.CAUTION:
- Degrease inside of the fuel injector insertion hole of the fuel injector pipe.
- Check the inside of the fuel injector insertion hole of the fuel injector pipe for foreign materials or damage.
- Be careful not to allow gasoline to contact with the fuel injector seal and the inside of the mounting hole.
- Apply liquid paraffin to the O-ring seal and install it.
- In order to prevent damaging the O-ring seal, do not install the fuel injector to the fuel injector pipe by tilting or twisting it.
- Make sure there is no gap between the fuel injector pipe and the fuel injector holder.

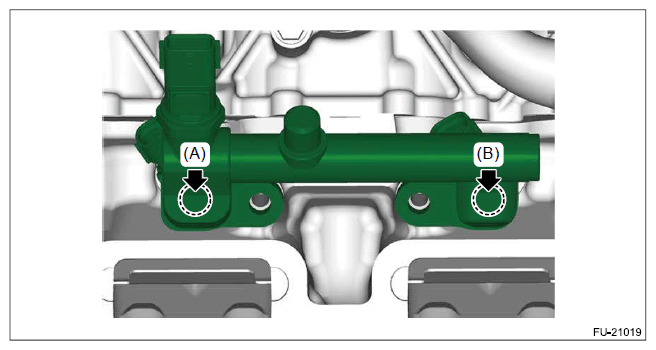

- Insert the fuel injector pipe RH and fuel injector as a single unit into the cylinder head, and align their positions. Then, evenly press the sections (A) and (B).CAUTION:
- When installing, apply liquid paraffin to the fuel injector seal.
- In order to prevent damaging the O-ring seal, do not install the fuel injector pipe and fuel injector by tilting them toward the cylinder head.
- Tighten the bolts which hold the fuel injector pipe RH.
Tightening torque:
19 N.m (1.9kgf-m, 14.0ft-lb)
- Connect connector (B) to the fuel injector, and connect connector (A) to the fuel pressure sensor.
- Install the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>High Pressure Fuel Delivery Pipe>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .
- Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>INSTALLATION .
- Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
