Oil Pipe

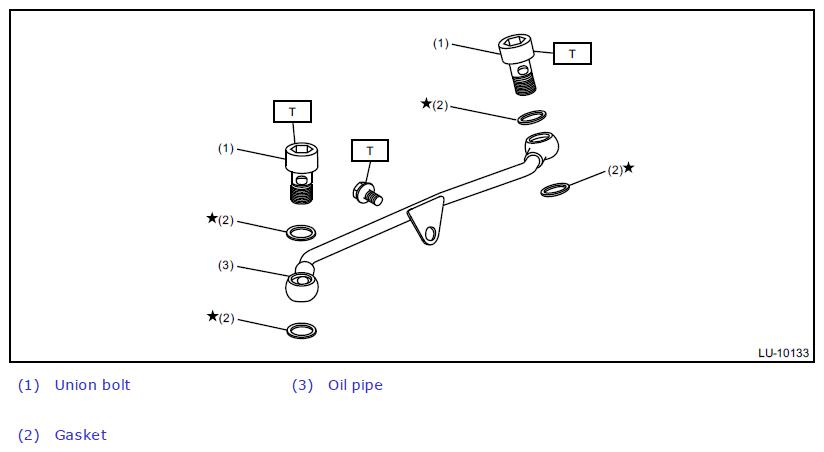

Fig 1: Exploded View Of Oil Pipe Components
G12395891Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to LUBRICATION (H4DO)>Oil Pipe>INSTALLATION .
