Front Suspension System And Wheel Alignment: Stabilizer: Installation: Notes

CAUTION:
  • Always tighten the stabilizer bushing in the state where the vehicle is at curb weight and the wheels are in full contact with the ground.

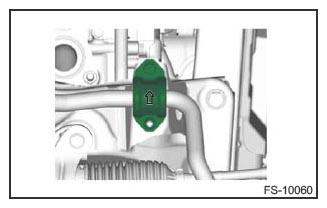

  • Install the clamp - stabilizer bushing with the arrow mark facing the front of the vehicle.
G11253798Courtesy of SUBARU OF AMERICA, INC.
