Crankshaft Position Sensor: Installation
Install in the reverse order of removal.

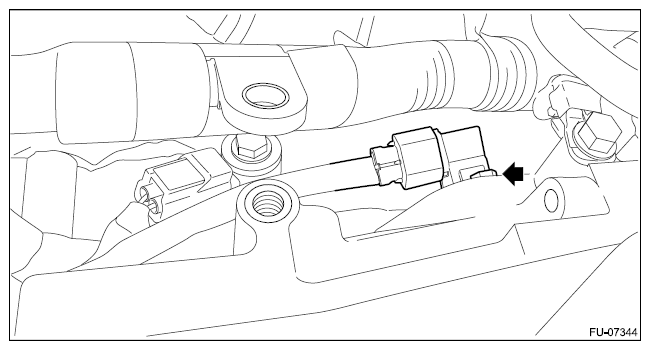

Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
 Courtesy of SUBARU OF AMERICA, INC.
|

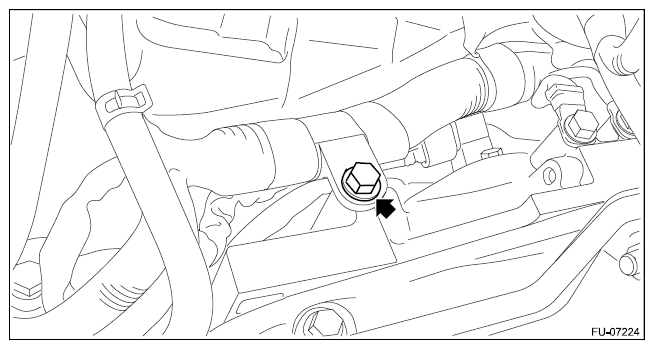

Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
 Courtesy of SUBARU OF AMERICA, INC.
|
