Fuel Pump Relay: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Remove the glove box. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .

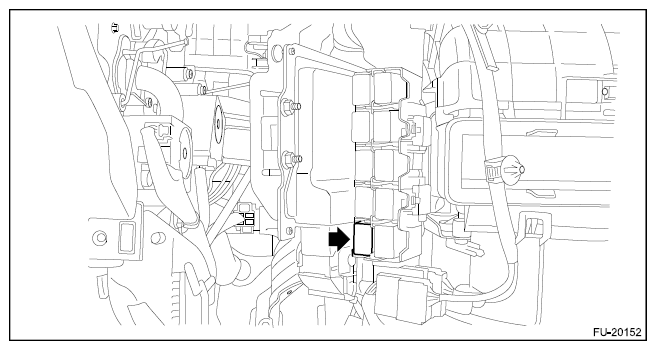

  3. Remove the fuel pump relay from relay block.
    G12505425Courtesy of SUBARU OF AMERICA, INC.
