Accelerator Pedal: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.

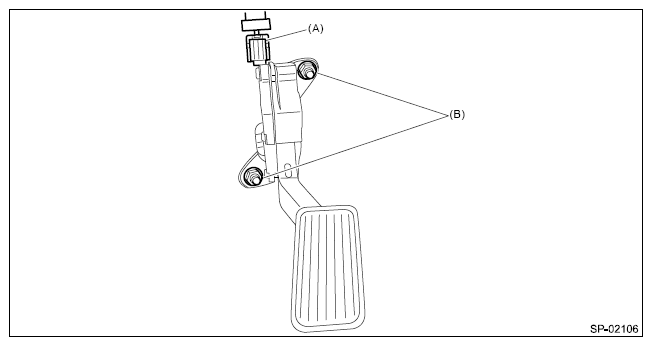

  2. Disconnect the connector (A).
  3. Remove the nut (B) securing accelerator pedal assembly, and remove the accelerator pedal assembly.
    G12508681Courtesy of SUBARU OF AMERICA, INC.
