lemon-mirror
:
Home
>>
Subaru
>>
2018
>>
Forester 2.5i, Standard Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Transmission Control Systems
>>
AT Shift Lock Control System
>>

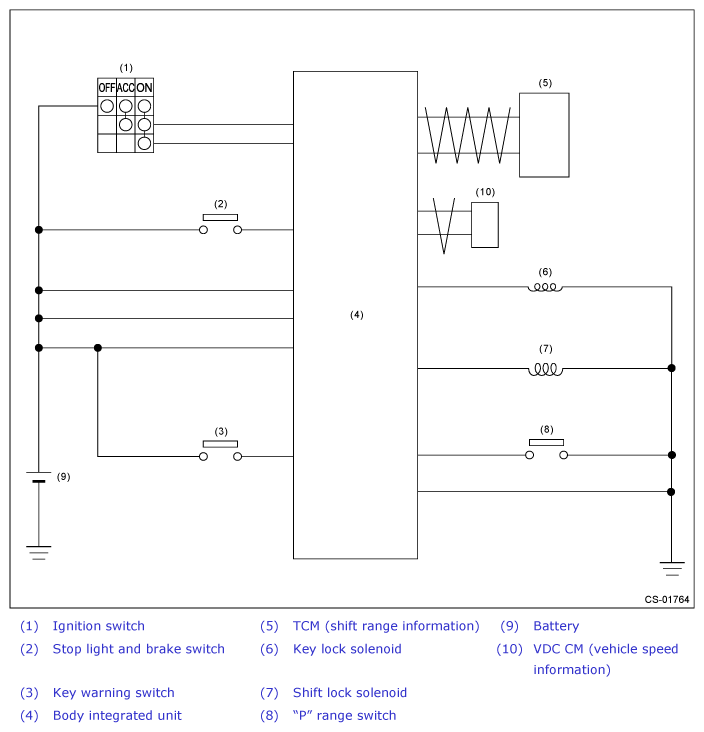

Wiring Diagram
>>
Model Without Push Button Ignition Switch
Model Without Push Button Ignition Switch
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
