Engine Wiring Harness: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>REMOVAL
  3. Disconnect each connector to remove the engine wiring harness.

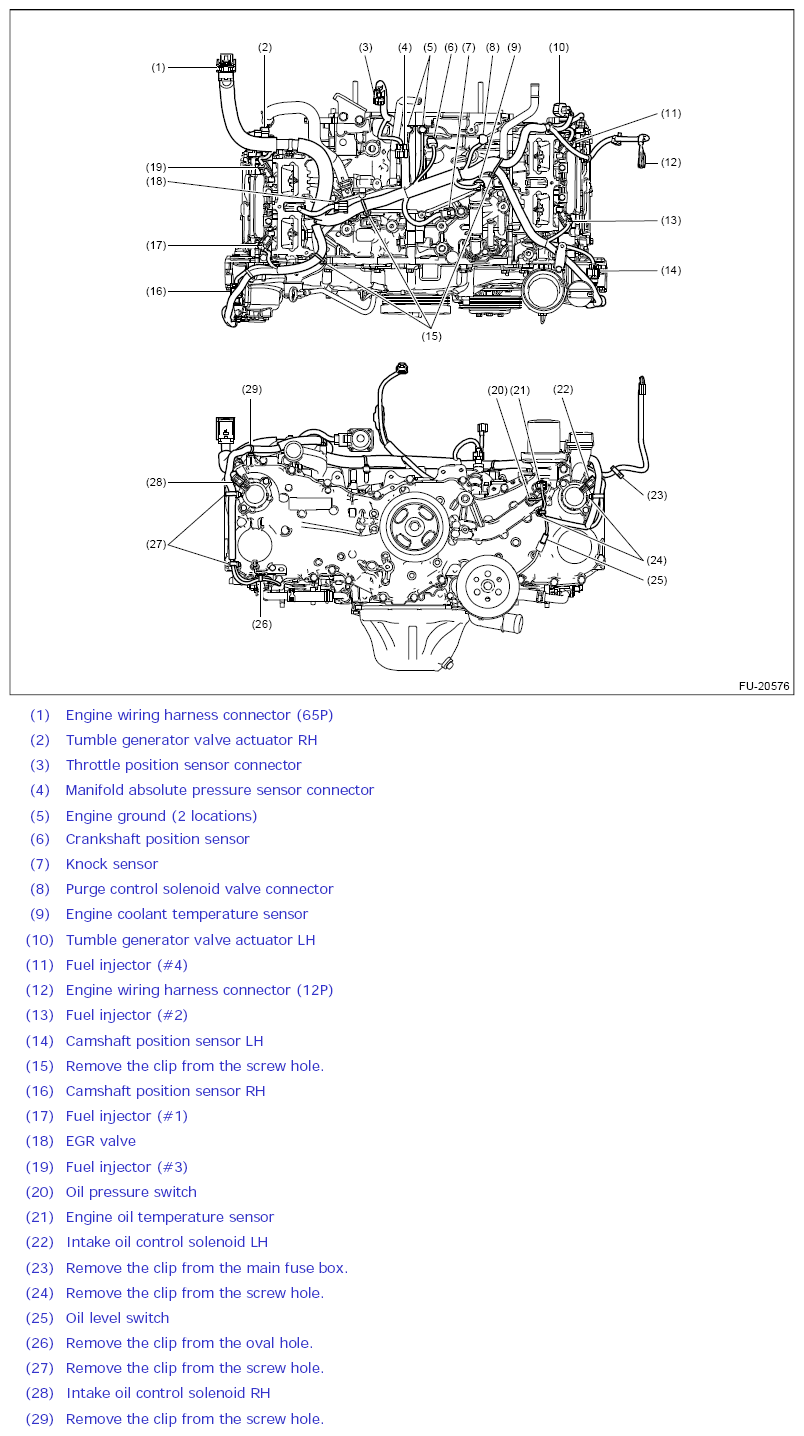

    • Structural diagram 1
      G12403276Courtesy of SUBARU OF AMERICA, INC.

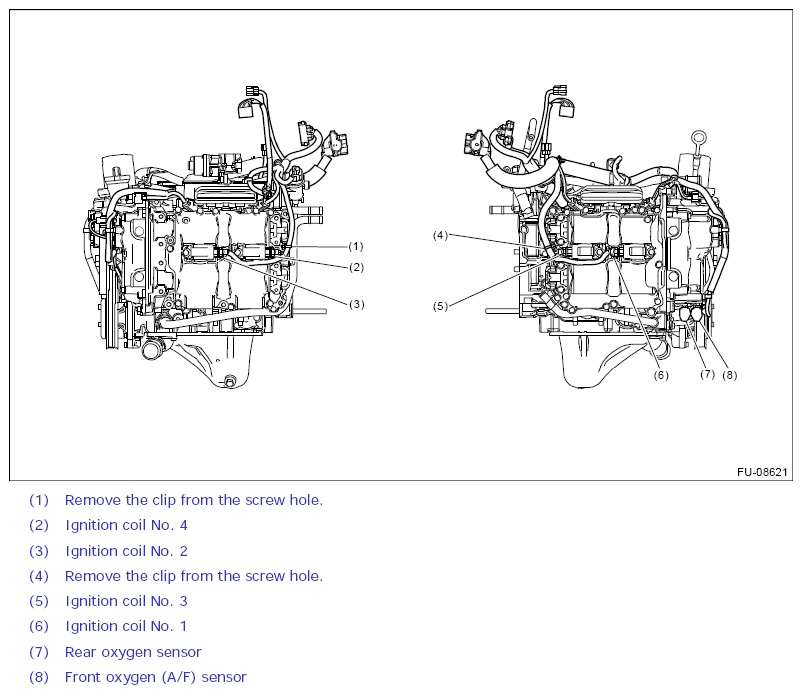

    • Structural diagram 2
      G12403277Courtesy of SUBARU OF AMERICA, INC.
