Ignition Coil: Disassembly

NOTE: Perform this procedure only when the protector is damaged.

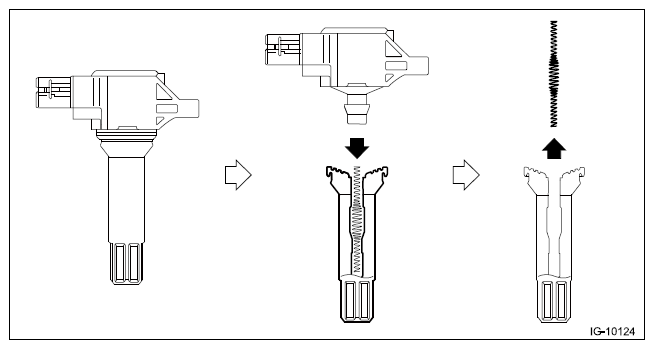

  1. Pull out the protector assembly from the ignition coil, and remove the spring from the protector.
    G12406713Courtesy of SUBARU OF AMERICA, INC.
