Home >> Subaru >> 2018 >> Outback 2.5i >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension System And Wheel Alignment >> Front Stabilizer >> Removal

Front Stabilizer: Removal

  1. Lift up the vehicle, and then remove the left and right front wheels.
  2. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  3. Remove the front stabilizer.

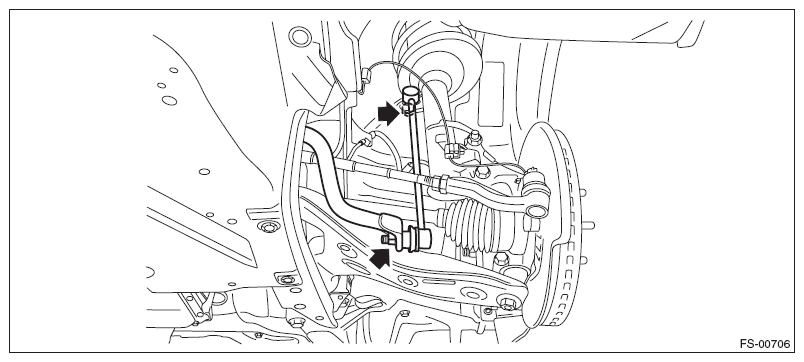

    1. Remove the left and right stabilizer links.
      G10276617Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the left and right stabilizer brackets.
      G06654897Courtesy of SUBARU OF AMERICA, INC.

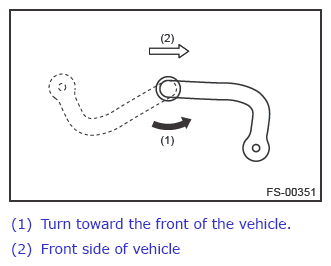

    3. Turn the front stabilizer by approximately 180° toward the front of the vehicle and pull out the front stabilizer from the right side of the vehicle.
      G12405985Courtesy of SUBARU OF AMERICA, INC.
