Intake Side

  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
      G11585612Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the fuel injector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H6DO)>Fuel Injector>REMOVAL .
  4. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor.

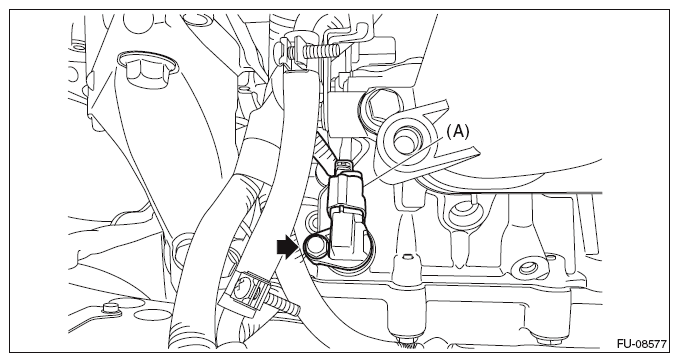

    • RH side
      G10263577Courtesy of SUBARU OF AMERICA, INC.

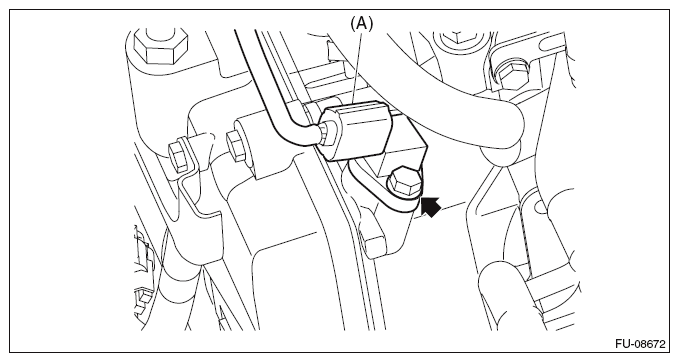

    • LH side
      G10263578Courtesy of SUBARU OF AMERICA, INC.
