Throttle Body: Installation

  1. Install the throttle body to the intake manifold.
    NOTE: Use a new gasket.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

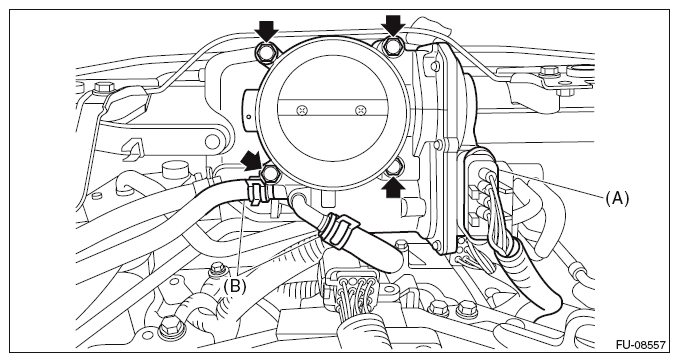

  2. Connect the connector (A) to the throttle position sensor, and connect the preheater hose (B) to the throttle body.
    G10263531Courtesy of SUBARU OF AMERICA, INC.
  3. Install the air intake boot. Ref. to INTAKE (INDUCTION) (H6DO)>Air Intake Boot>INSTALLATION .
  4. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  5. Fill engine coolant. Ref. to COOLING(H6DO)>Engine Coolant>REPLACEMENT>FILLING OF ENGINE COOLANT .
  6. Install the collector cover.
