VDC Control Module And Hydraulic Control Unit (VDC Control Module & H/U)

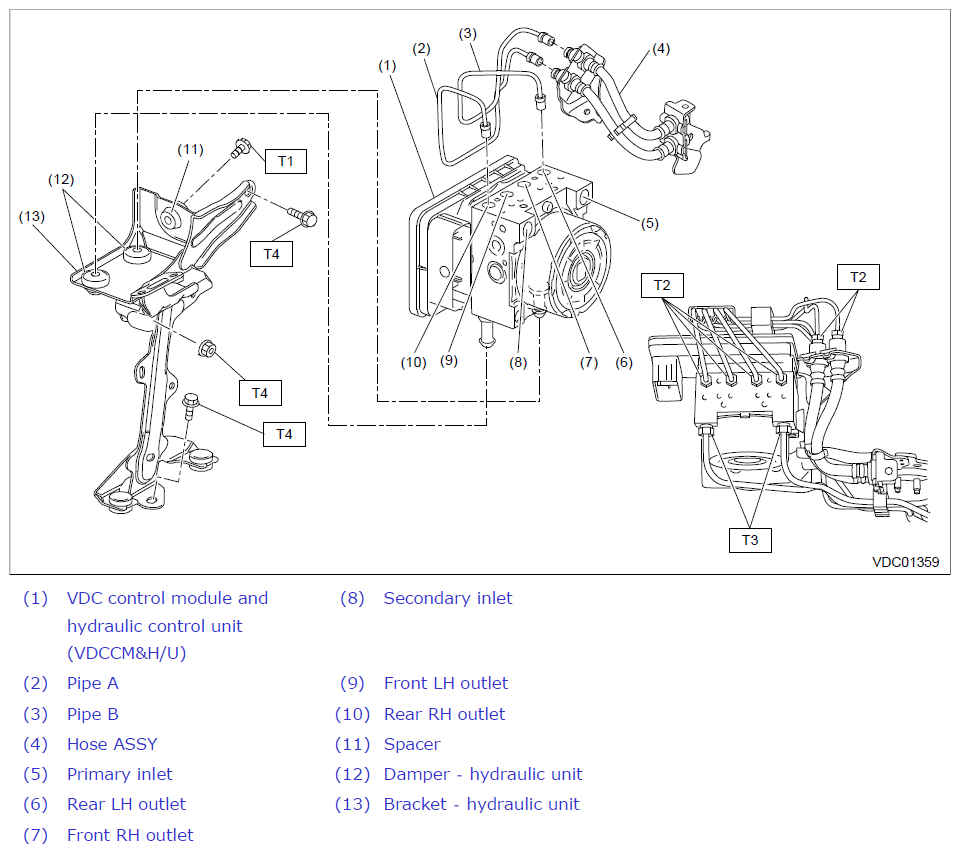

- Models without Eye-Sight
Courtesy of SUBARU OF AMERICA, INC.
Tightening Torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 15 (1.5, 11.1)
T3: 19 (1.9, 14)
T4: 33 (3.4, 24.3)

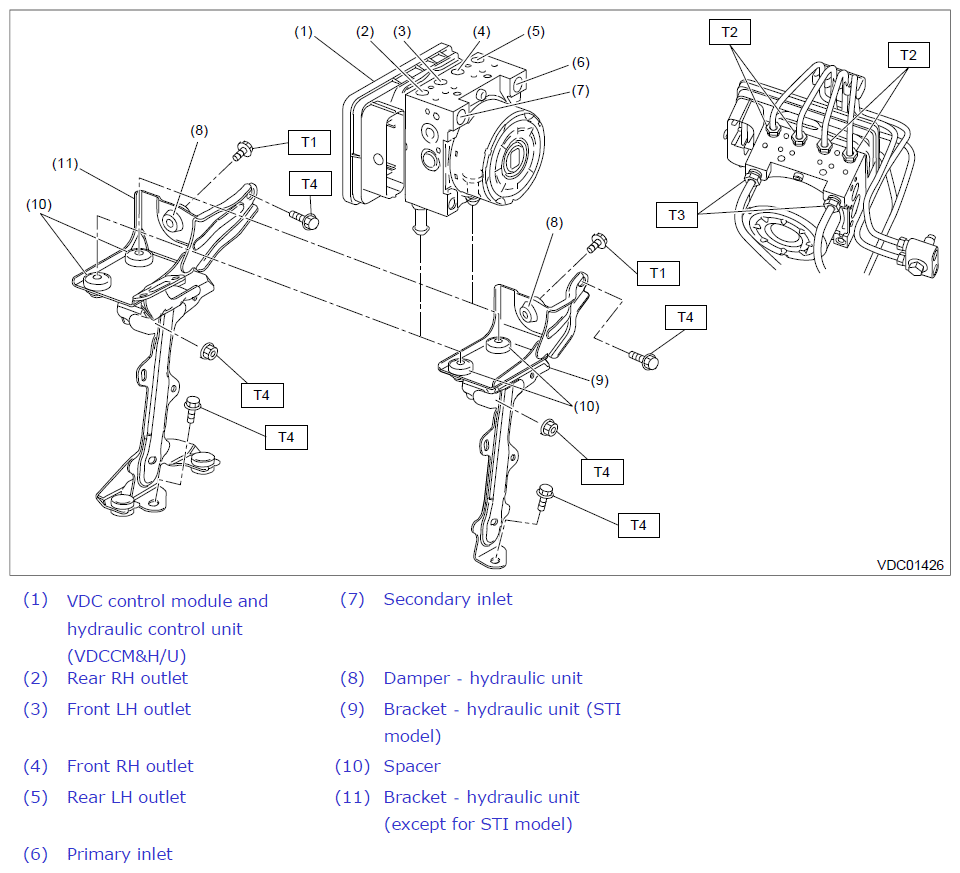

- Models with Eye-Sight
Courtesy of SUBARU OF AMERICA, INC.
Tightening Torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 15 (1.5, 11.1)
T3: 19 (1.9, 14)
T4: 33 (3.4, 24.3)
