Home >> Subaru >> 2018 >> WRX Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Dynamics Control System >> VDC OFF Switch >> Removal

VDC OFF Switch: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver OUT. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .

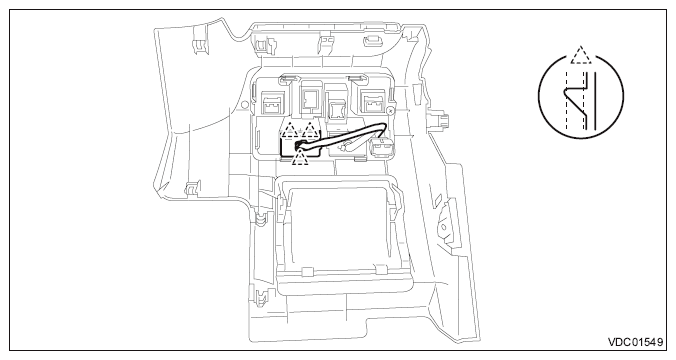

  3. Release the claws and remove the VDC OFF switch.
    G10297696
