Fuel Sub Level Sensor: Inspection

  1. Check that the fuel sub level sensor has no damage.

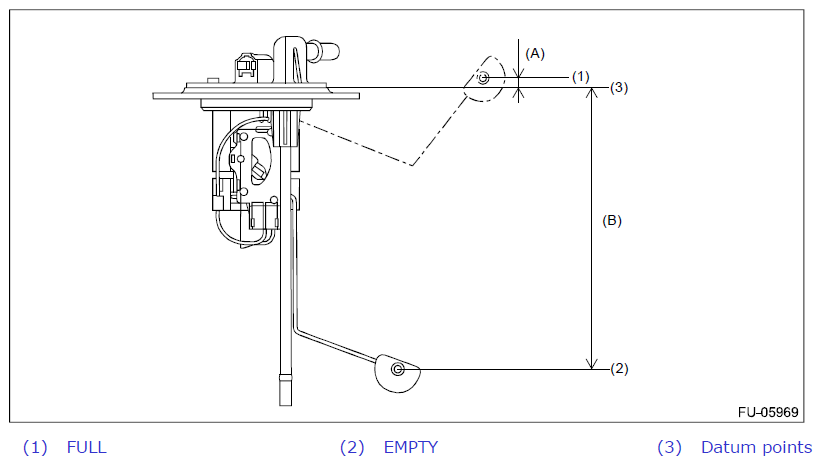

  2. Measure the fuel sub level sensor float position.
    G12444308
    FLOAT POSITION STANDARD
    FULL to Datum point (A) 5.31±3.5 mm (0.209±0.138 in)
    EMPTY to Datum point (B) 160.6±3.5 mm (6.32±0.138 in)
  3. Measure the resistance between fuel sub level sensor terminals.
    G08315563
    FLOAT POSITION TERMINAL NO. STANDARD
    FULL (A) 1 and 2 8.7±1.0 Ω
    EMPTY (B) 270.9±4.0 Ω
