Home >> Subaru >> 2018 >> WRX Base >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Injection System (Except For STI) >> General Description >> Components With Torque Specification >> Fuel Filler Pipe

Fuel Filler Pipe

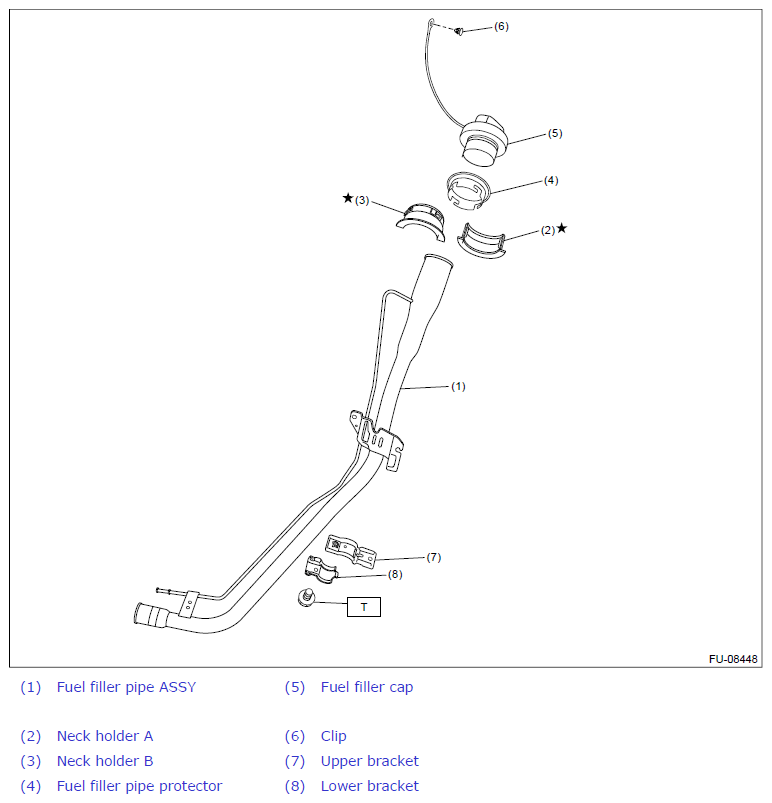

Fig 1: Exploded View Of Fuel Filler Pipe Components

G12444040

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
