Home >> Subaru >> 2018 >> WRX Base >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Injection System (Except For STI) >> General Description >> Components With Torque Specification >> Intake Manifold

Intake Manifold

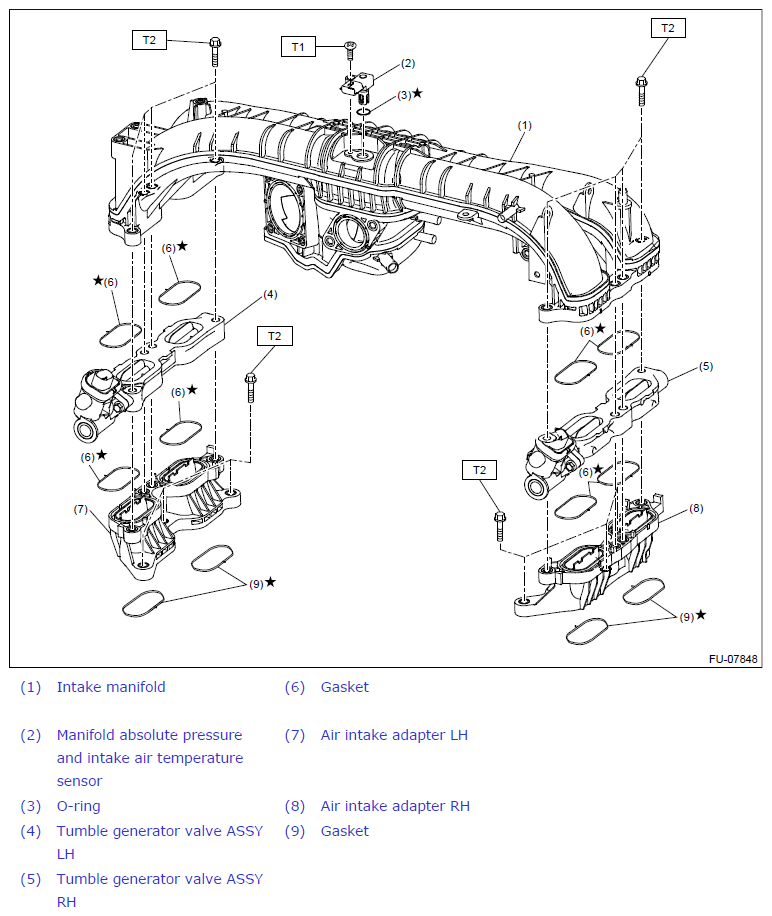

Fig 1: Exploded View Of Intake Manifold Components

G12444032

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 3.5 (0.4, 2.6)

T2: 25 (2.5, 18.4)
