Steering Gearbox

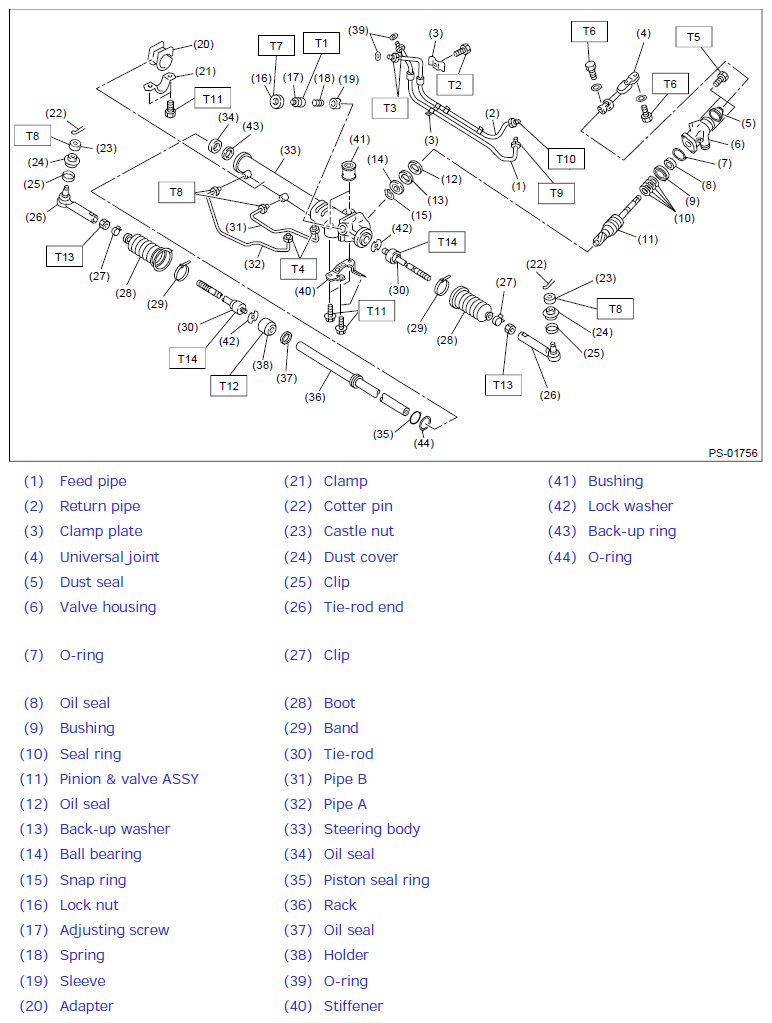

- Hydraulic type
Courtesy of SUBARU OF AMERICA, INC.
Tightening Torque: N.m (kgf-m, ft-lb)
T1: Tighten to 5.9 (0.6, 4.4), and loosen by 5 degrees .
T2: 9 (0.9, 6.6)
T3: 15 (1.5, 11.1)
T4: 17 (1.7, 12.5)
T5: 20 (2, 14.8)
T6: 24 (2.4, 17.7)
T7: 25 (2.5, 18.4)
T8: 27 (2.8, 19.9)
T9: 37 (3.8, 27.3)
T10: 29 (3, 21.4)
T11: 60 (6.1, 44.3)
T12: 70 (7.1, 51.6)
T13: 85 (8.7, 62.7)
T14: 93 (9.5, 68.6)

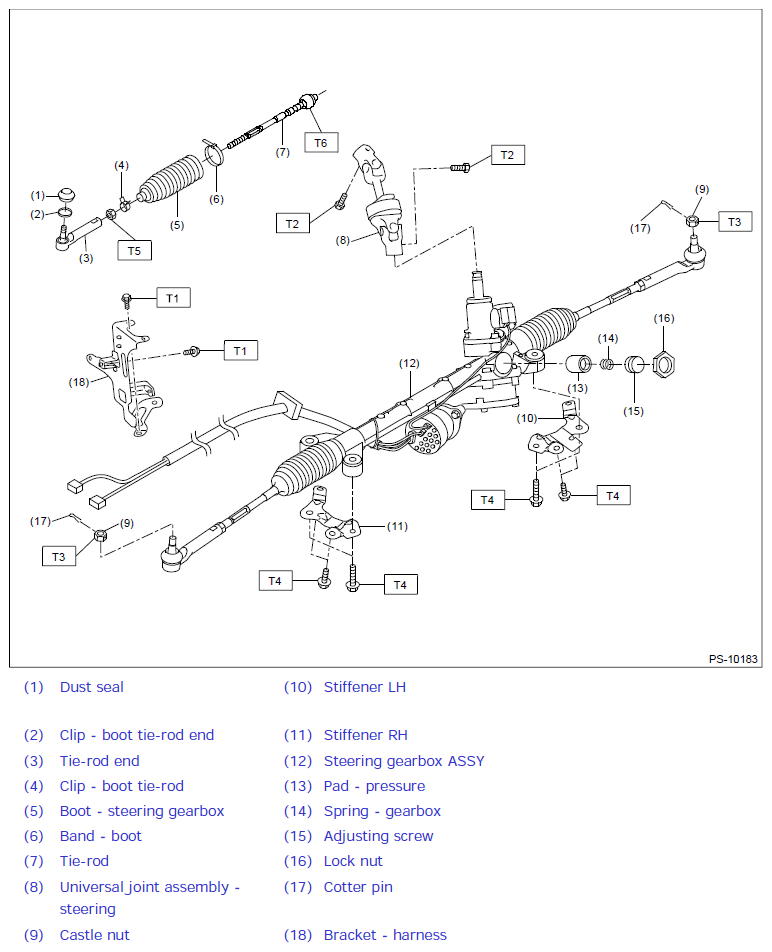

- Electric type
Courtesy of SUBARU OF AMERICA, INC.
Tightening Torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 24 (2.4, 17.7)
T3: 27 (2.8, 19.9)
T4: 60 (6.1, 44.3)
T5: 85 (8.7, 62.7)
T5: 85 (8.7, 62.7)
