Pipe Assembly: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL

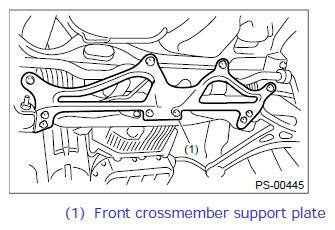

  3. Lift up the vehicle, and remove the front crossmember support plate.
    G12448734

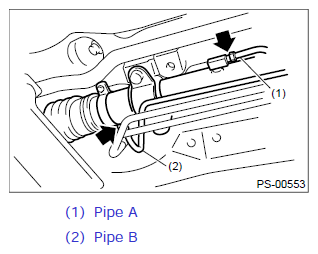

  4. Remove the one pipe joint at the center of the gearbox, and connect the vinyl hose to the pipe and the joint. Discharge the fluid by turning the steering wheel fully clockwise and counterclockwise. Discharge the fluid similarly from other pipes.
    G12448735

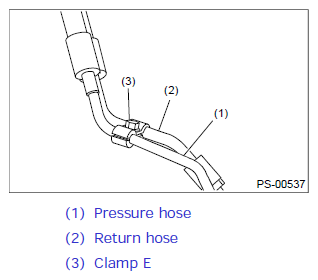

  5. Remove the clamp E from return hose and pressure hose.
    G12448736

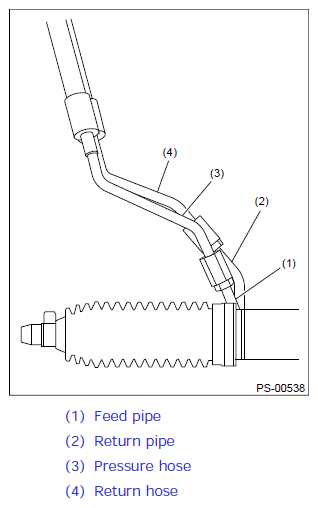

  6. Disconnect the return hose from return pipe and disconnect the pressure hose from feed pipe.
    G12448737
  7. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (STI)>Air Intake Duct>REMOVAL

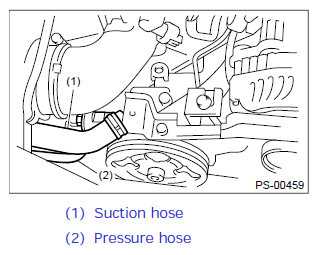

  8. Disconnect the suction hose and pressure hose from oil pump.
    G12448738

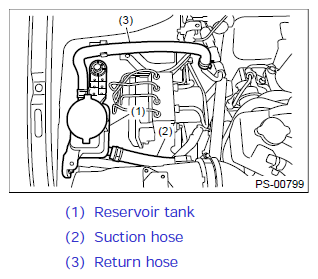

  9. Disconnect the suction hose and return hose from the reservoir tank.
    G12448739

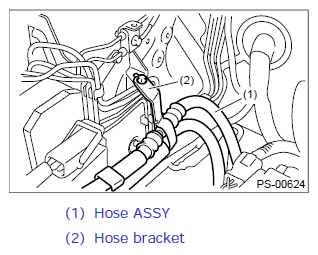

  10. Remove the hose bracket and take out the hose assembly from vehicle.
    G12448740
