Home >> Subaru >> 2018 >> WRX Base >> Repair and Diagnosis >> Transmission >> M/T Clutch System >> Flywheel >> Removal

M/T Clutch System: Flywheel: Removal

  1. Remove the transmission assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT) (TY75)>Manual Transmission Assembly>REMOVAL Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT) (TY85)>Manual Transmission Assembly>REMOVAL
  2. Remove the Clutch Cover and Clutch Disc. Ref. to CLUTCH SYSTEM>Clutch Disc and Cover>REMOVAL

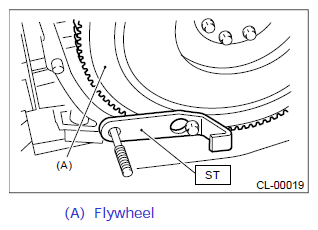

  3. Using the ST, remove the flywheel.

    ST 498497100 CRANKSHAFT STOPPER

    G12448499
  4. Drive out the pilot bearing from the flywheel.
