Relay and Fuse: Location

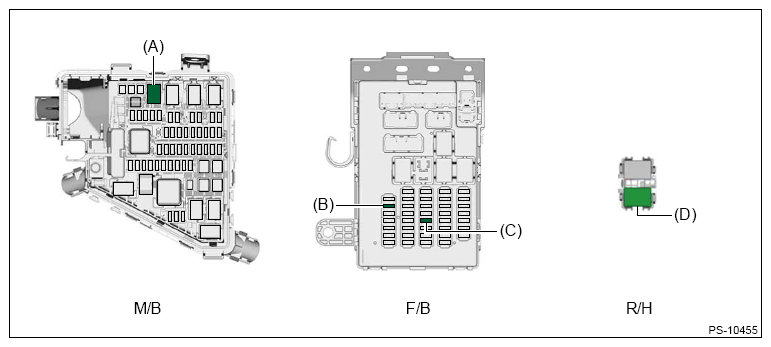

G13200385Courtesy of SUBARU OF AMERICA, INC.
Main fuse box (M/B) SBF fuse 80 A (power steering Control Module) (A)
Fuse & relay box (F/B) Fuse 7.5 A (power steering Control Module) (B)
Fuse 15 A (steering heater relay) (C)
Relay holder (R/H) Steering heater relay (D)
