Home >> Subaru >> 2019 >> Forester Base >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Shift Lock Control System >> Wiring Diagram

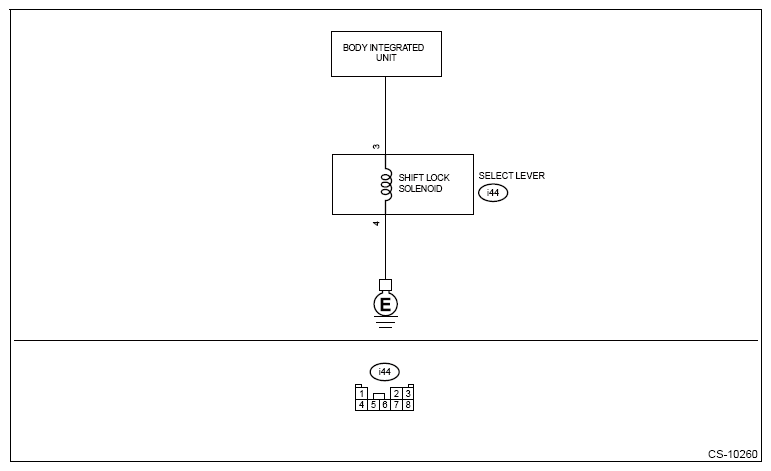

Shift Lock Control System: Wiring Diagram

G13225466

Courtesy of SUBARU OF AMERICA, INC.
