Home >> Subaru >> 2019 >> Outback 2.5i >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass & Mirrors >> Power Window Control Switch >> Removal >> Main Switch

Main Switch

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR
  3. Remove the panel - power window main switch.
    CAUTION: Be careful not to damage the trim panel - front door with the panel - power window main switch.
    1. Insert a sheet of protective paper (a) between panel - power window main switch and trim panel - front door.
    2. Remove the screws.
      G10272704Courtesy of SUBARU OF AMERICA, INC.

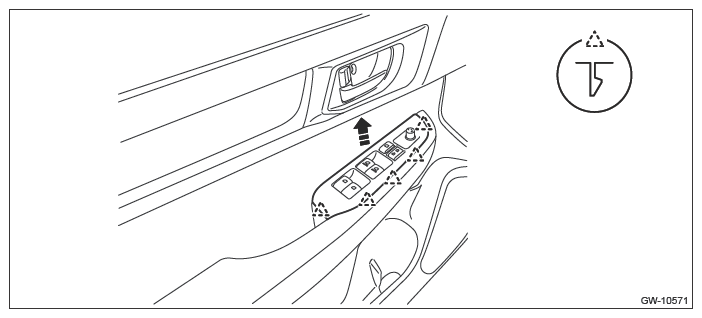

    3. Release the claws, and then remove the panel - power window main switch.
      G13251177Courtesy of SUBARU OF AMERICA, INC.
    4. Release the claws, and then remove the switch - power window main.
      G10272706Courtesy of SUBARU OF AMERICA, INC.
