Home >> Subaru >> 2019 >> WRX Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass & Mirrors >> General Description >> Components With Torque Specifications >> Mirror

Components With Torque Specifications: Mirror

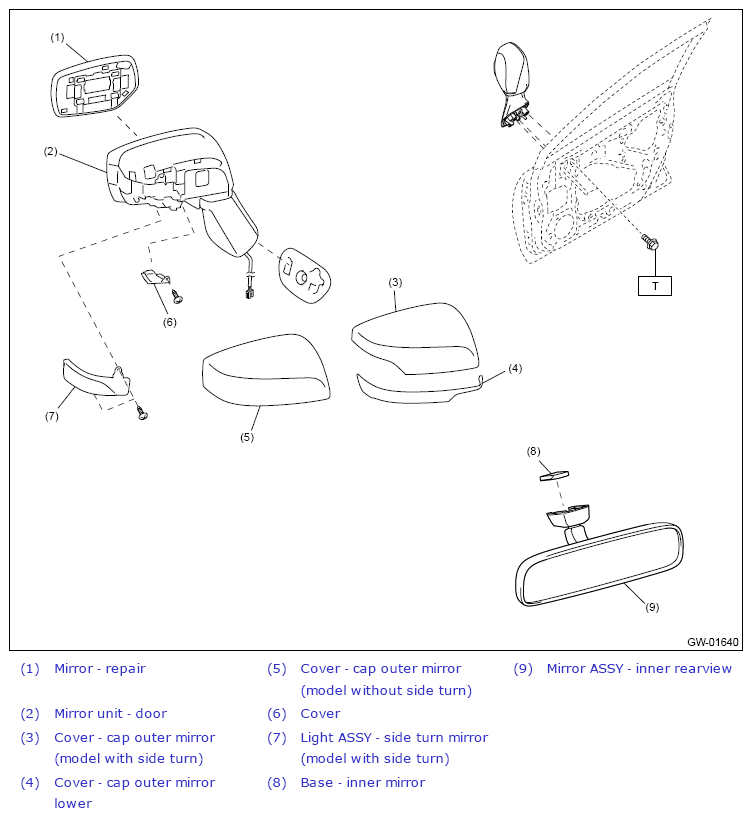

Fig 1: Mirror Components (With Torque Specifications)

G13262763

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
