Front Strut

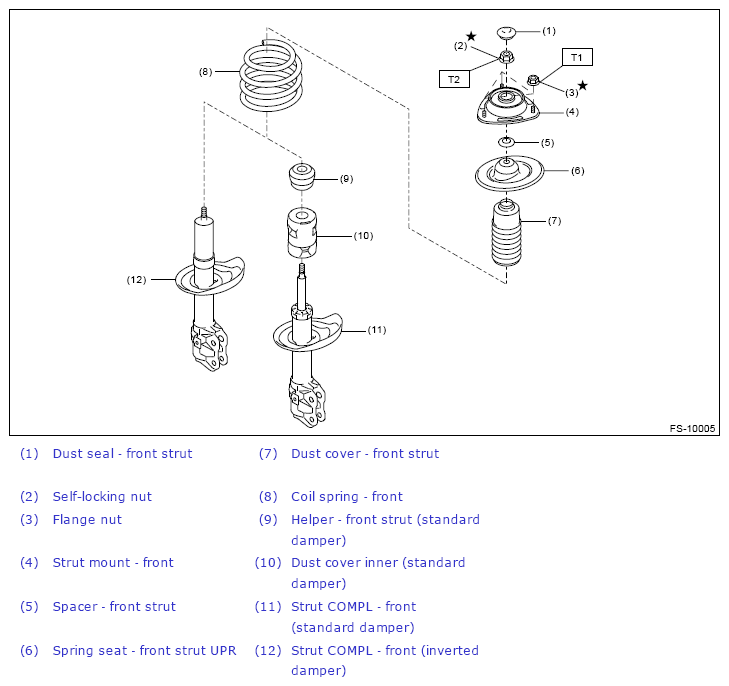

Fig 1: Explode View Of Front Strut Components (With Torque Specification)

G13259761

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2, 14.8)

T2: 55 (5.6, 40.6)
