Operating Cylinder: Installation
- Install in the reverse order of removal.NOTE:
- Use a new gasket.
- Before installing the operating cylinder, apply grease to the contact point of the release lever and operating cylinder.
Grease:
NICHIMOLY N-130 or equivalent

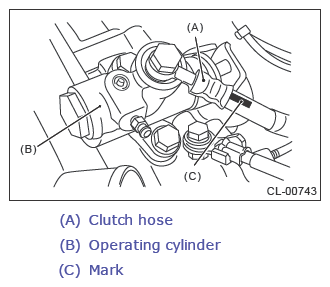

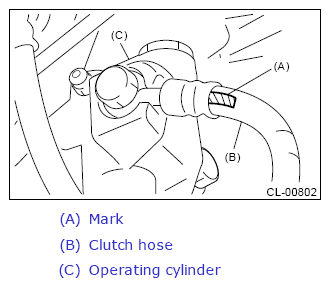

- Be sure to install the clutch hose with the mark side facing upward.
- Be careful not to twist the clutch hose during installation.
- STI model
Tightening torque:
T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
T2: 41 N.m (4.2 kgf-m, 30.2 ft-lb)
- Except for STI model
Tightening torque:
T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
T2: 37 N.m (3.8 kgf-m, 27.3 ft-lb)
- After bleeding air from the operating cylinder, ensure that the clutch operates properly. Refer to CLUTCH SYSTEM>CLUTCH FLUID AIR BLEEDING .
