Operating Cylinder: Removal

CAUTION: Brake fluid spilled on the vehicle body will harm the paint surface; therefore, wash it off with water and wipe clean quickly if spilled.
  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the collector cover. (Except for STI model) Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>COLLECTOR COVER>REMOVAL .
  3. Remove the intercooler. Refer to INTAKE (INDUCTION) (STI)>INTERCOOLER>REMOVAL . Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>INTERCOOLER>REMOVAL .
  4. Remove the starter. (STI model) Refer to STARTING/CHARGING SYSTEMS (STI)>STARTER>REMOVAL .
  5. Disconnect the clutch hose.
    CAUTION:
    • Cover the hose joint to prevent the brake fluid from flowing out.
    • Do not loosen or remove the cap bolts.
    • STI model

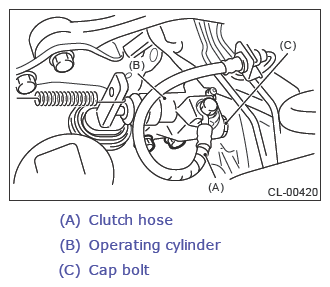

      G13260693Courtesy of SUBARU OF AMERICA, INC.
    • Except for STI model

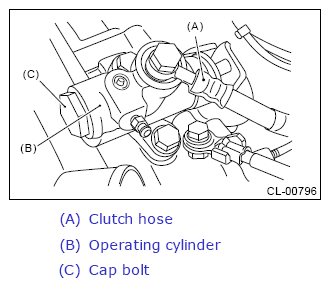

    G13260694Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the operating cylinder.
    • STI model

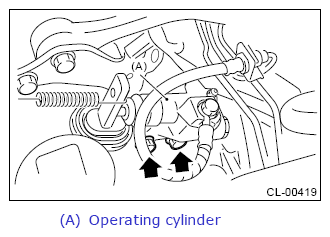

      G13260695Courtesy of SUBARU OF AMERICA, INC.
    • Except for STI model

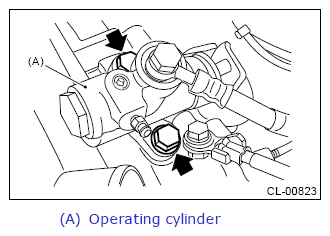

    G13260696Courtesy of SUBARU OF AMERICA, INC.
