Intermediate Case: Installation

  1. Clean the mating surface of intermediate case and transmission case.
  2. Face the O-ring side of the CVTF filter to the intermediate case side, and install the CVTF filter.
    NOTE: Apply CVTF to the O-rings.
    G09482109Courtesy of SUBARU OF AMERICA, INC.
  3. Install the O-ring to the transmission case.
    NOTE:
    • Use new O-rings.
    • Apply CVTF to the O-rings.
    G06654544Courtesy of SUBARU OF AMERICA, INC.
  4. Apply liquid gasket to intermediate case seamlessly.

    Liquid gasket:

    THREE BOND 1215B or equivalent

    G06654547Courtesy of SUBARU OF AMERICA, INC.

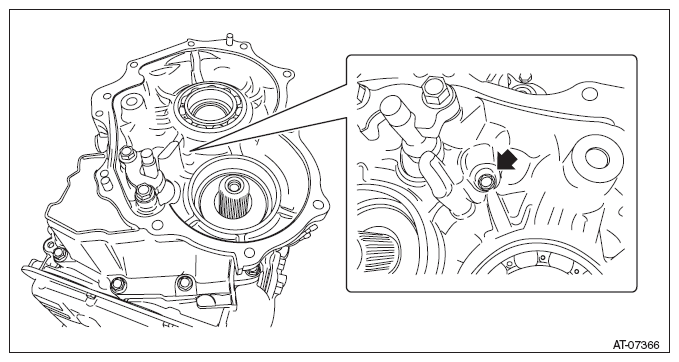

  5. Install the intermediate case and the transmission hanger to the transmission case.
    NOTE: Make sure to install the arrowed bolt.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    G10268246Courtesy of SUBARU OF AMERICA, INC.
  6. Install the transfer reduction driven gear assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER REDUCTION DRIVEN GEAR>INSTALLATION .
  7. Install the center differential carrier. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CENTER DIFFERENTIAL CARRIER>INSTALLATION .
  8. Install the transfer clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>INSTALLATION .
  9. Install the rear drive shaft. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>INSTALLATION .
  10. Install the parking pawl. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PARKING PAWL>INSTALLATION .
  11. Install the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>INSTALLATION .
  12. Install the transmission to vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
