Rocker Cover

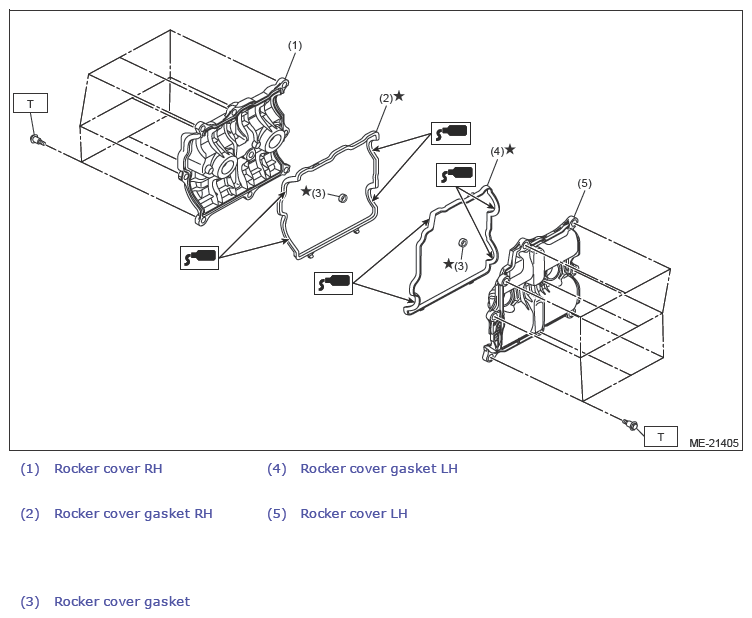

Fig 1: Rocker Cover Components Location (With Tightening Torque Specification)
G13198619Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to MECHANICAL (H4DOTC)>ROCKER COVER>INSTALLATION .
