Wheel Alignment: Inspection: Caster

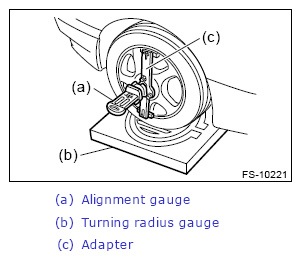

- Place the front wheel on the turning radius gauge. Make sure the ground contact surfaces of the front and rear wheels are at the same height.
- Set the adapter into the center of wheel, and then set the wheel alignment gauge.
- Measure the caster angle in accordance with the operation manual for wheel alignment gauge.
Caster 4°13'
