Converter Case: Disassembly

  1. Remove the pitching stopper bracket.
  2. Remove the oil drain plug and overflow drain plug. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DIFFERENTIAL GEAR OIL>REPLACEMENT .

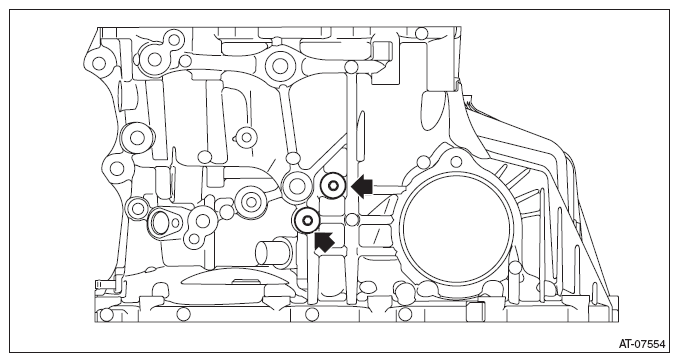

  3. Remove all plugs.
G09482367Courtesy of SUBARU OF AMERICA, INC.
