Inhibitor Switch: Inspection
When the driving condition or starter operation is improper, first check the shift linkage for improper operation. If the shift linkage is functioning properly, check the inhibitor switch.
- Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .

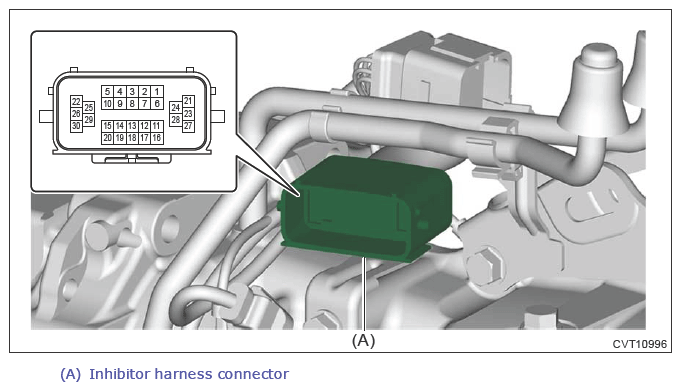

- Disconnect the engine wiring harness connector.
- Check for continuity in inhibitor switch circuit by shifting the select lever in "P", "R", "N" and "D".NOTE:
- Check that there is no continuity in the starter circuit when the select lever is in the "R" and "D" ranges.
- When inhibitor switch is normal, check there is no poor contact in vehicle side connector and no open circuit in harness.

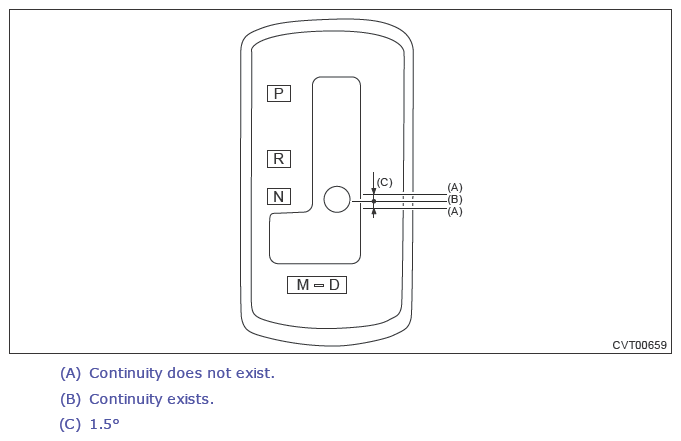

Signal sent to TCM Range Terminal No. P 4 - 24 R 5 - 24 N 9 - 24 D 10 - 24 Starter signal P/N 6 - 8 Back-up light circuit R 25 - 29 - Check that there is continuity at equal points when the select lever is moved 1.5° in both directions from the "N" range.
If there is continuity in only one direction or in other points, adjust the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INHIBITOR SWITCH>ADJUSTMENT .
- Repeat the above inspection in other gear ranges. If there is fault, adjust the inhibitor switch and select cable.
- For adjustment of inhibitor switch, refer to "CONTINUOUSLY VARIABLE TRANSMISSION (TR690)" information. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INHIBITOR SWITCH>ADJUSTMENT .
- For adjustment of select cable, refer to "CONTROL SYSTEM" information. Ref. to CONTROL SYSTEMS>SELECT CABLE>ADJUSTMENT .
