Secondary Pressure Sensor: Removal
CAUTION:
- If water or oil contacts the connector terminal of secondary pressure sensor, replace it with a new part.
- If CVTF has leaked when the secondary pressure sensor is removed, adjust the CVTF level after installing the secondary pressure sensor.
- Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Clean the transmission exterior.
- Disconnect the secondary pressure sensor harness connector.

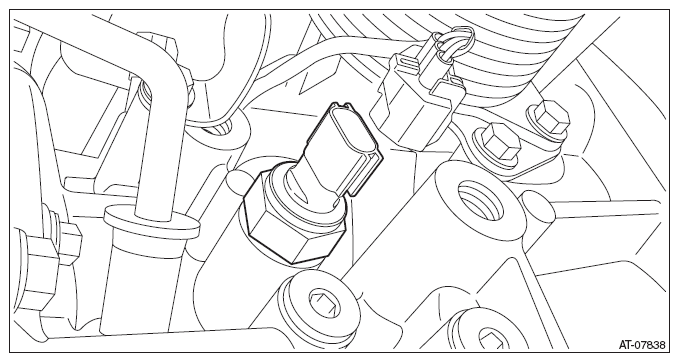

- Remove the secondary pressure sensor.
CAUTION:
After removing the sensors, plug the holes to avoid foreign materials intruding as necessary.
NOTE:
Use Ko-ken 3/8 12-point 27 mm (manufacturer product No. 3305M-27) deep socket.
