Extension Case: Disassembly

  1. Remove the extension case oil seal from the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE OIL SEAL>REPLACEMENT .

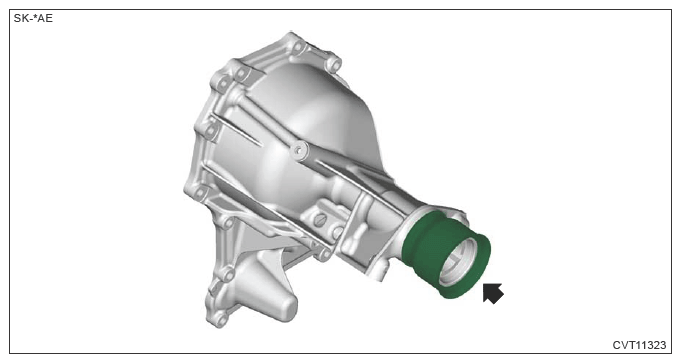

  2. Remove the dust cover from extension case.
    G13225804Courtesy of SUBARU OF AMERICA, INC.

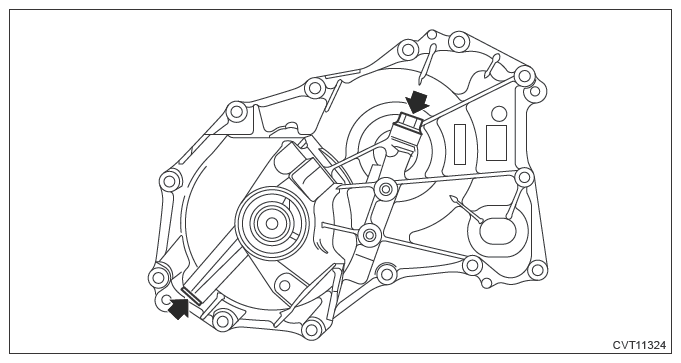

  3. Remove all plugs.
    G13225805Courtesy of SUBARU OF AMERICA, INC.
