Electric Oil Pump

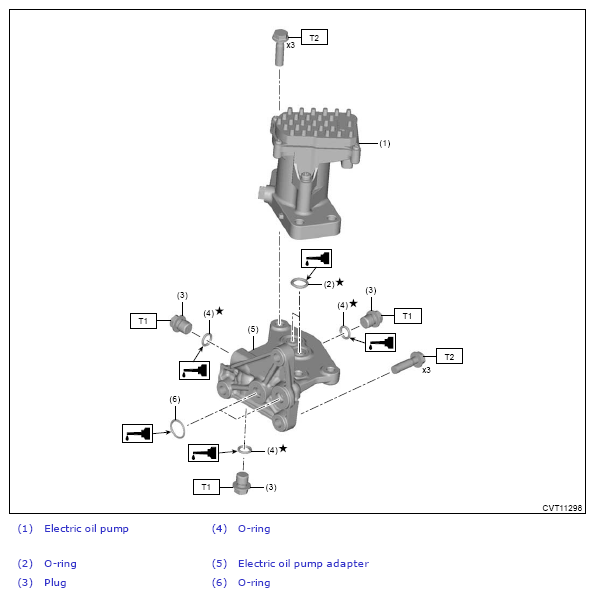

Fig 1: Electric Oil Pump Components Location

G13591882

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: 22 (2.2, 16.2)
