Transmission Harness: Removal

  1. Remove the transmission body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the air breather hose. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>AIR BREATHER HOSE>REMOVAL .
  3. Disconnect the ground terminal (electric oil pump side), and then disconnect the connector from the electric oil pump, turbine speed sensor, primary speed sensor, secondary speed sensor and secondary pressure sensor.
    G13225754Courtesy of SUBARU OF AMERICA, INC.

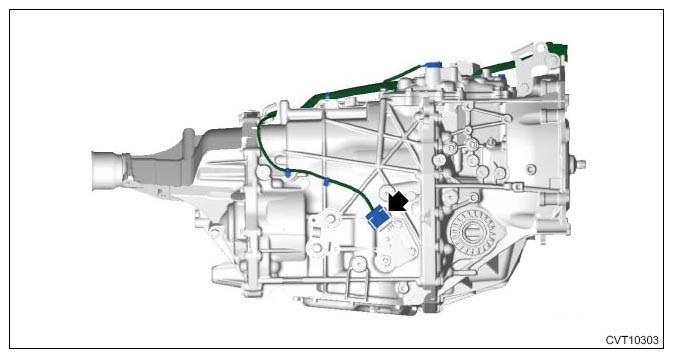

  4. Disconnect the connector from inhibitor switch.
    G11255688Courtesy of SUBARU OF AMERICA, INC.

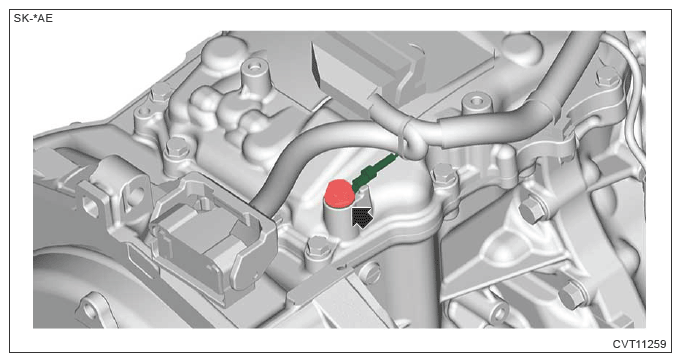

  5. Disconnect the ground terminal (valve cover side).
    G13225756Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the transmission harness from the control valve body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CONTROL VALVE BODY>REMOVAL .
  7. Remove all clips and remove the transmission harness.
