Cockpit Display: Disassembly

  1. Remove the center information display.

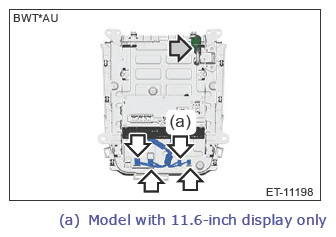

    1. Release the clips and disconnect the connectors.
      G13622965Courtesy of SUBARU OF AMERICA, INC.

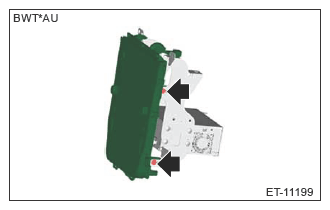

    2. Remove the screws and remove the center information display.
    G13622966Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Remove the screws on LH side in the same procedure as on the RH side.
  2. Remove the switch hazard. Refer to LIGHTING SYSTEM>Hazard Switch>REMOVAL .

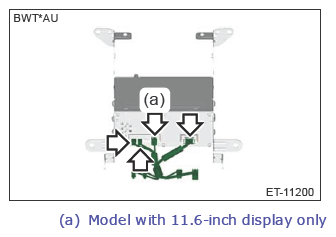

  3. Disconnect the connectors, and remove the cord assembly.
    G13622967Courtesy of SUBARU OF AMERICA, INC.

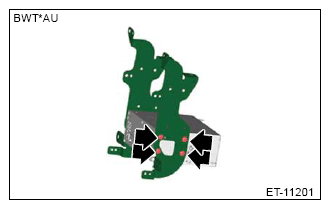

  4. Remove the screws and remove the unit bracket from the cockpit control module.
    G13622968Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Remove the screws on LH side in the same procedure as on the RH side.
