External Connection Terminal: Removal: Front

CAUTION: Before handling the airbag system components, refer to AIRBAG SYSTEM>General Description>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: Release the shift lock and shift the select lever to the "N" position. Refer to CONTROL SYSTEMS>Select Lever>REMOVAL .
  2. Remove the cover LWR driver. Refer to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
  3. Remove the visor assembly. Refer to INSTRUMENTATION/DRIVER INFO>Combination Meter>REMOVAL .
  4. Remove the driver monitoring unit assembly. Refer to INSTRUMENTATION/DRIVER INFO>Driver Monitoring Unit>REMOVAL .
    NOTE: For the model without driver monitoring system, remove the cover center UPR in the same procedure as for the driver monitoring unit assembly.
  5. Remove the grip and boot. Refer to CONTROL SYSTEMS>Select Lever>REMOVAL .
  6. Remove the cover assembly front. Refer to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  7. Remove the ornament panel mid passenger and the center information display assembly. Refer to ENTERTAINMENT & MONITORING>Cockpit Display>REMOVAL>DISPLAY ASSEMBLY .
  8. Remove the pocket COMPL and the panel instrument passenger. Refer to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .
  9. Remove the AUX unit assembly.
    1. Disconnect the AUX cord.

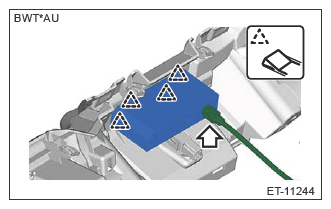

    2. While pressing the claw, press it in from the rear to remove the AUX unit assembly.
    G13623022Courtesy of SUBARU OF AMERICA, INC.
