Outer Mirror Assembly: Disassembly

CAUTION: When removing the repair mirror, be careful not to damage the back surface of repair mirror with a flat tip screwdriver.
  1. Operate the remote control mirror switch to face the mirror repair toward inside.
  2. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the mirror repair.
    1. Insert a flat tip screwdriver or similar tool into the tool insertion opening shown in the figure, release the engagement and take the mirror repair outward to remove.
      G11246118Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector. (Model with mirror heater)
      G11246119Courtesy of SUBARU OF AMERICA, INC.
  4. Release the claws, and then remove the cover cap outer mirror.
    CAUTION: Be careful not to apply excessive force when removing the outer mirror cover, as the lower hooks may become damaged.

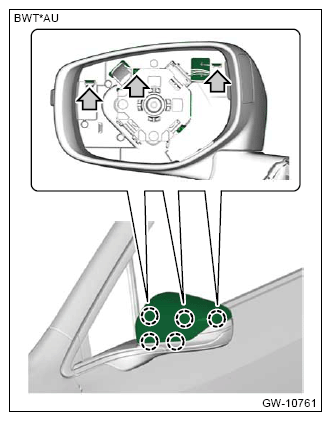

    G13625397Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the screws and release the claws, and then remove the cover cap outer mirror lower.

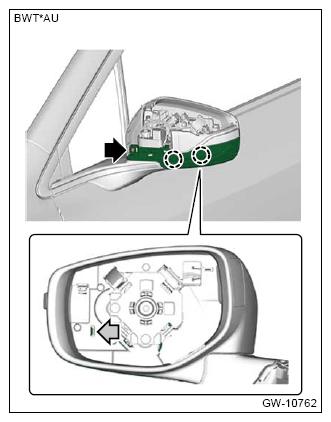

    G13625398Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the Subaru Rear Vehicle Detection system indicator. (Model with Subaru Rear Vehicle Detection system)
    1. Disconnect the connector.
    2. Release the claws and then remove the Subaru Rear Vehicle Detection system indicator.
      G13200983Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the light assembly side turn mirror.
    CAUTION:
    1. Remove the screws and release the claws, and then pull out the light assembly side turn mirror to the front of the vehicle.
    2. Disconnect the connector and remove the light assembly side turn mirror.

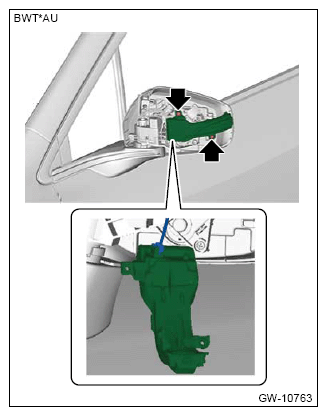

    G13625400Courtesy of SUBARU OF AMERICA, INC.
