Home >> Subaru >> 2020 >> Outback Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Dynamics Control (VDC) System >> General Description >> Components With Torque Specifications >> Abs Wheel Speed Sensor

Abs Wheel Speed Sensor

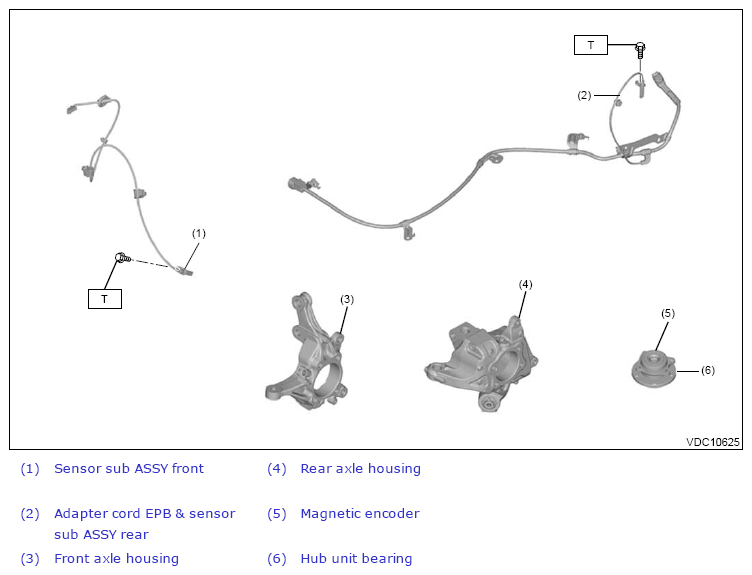

Fig 1: ABS Wheel Speed Sensor Components (With Torque Specification)

G13621298

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
