Home >> Subaru >> 2020 >> Outback Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Diagnostics) (2.5L) - Introduction >> Electrical Component Location >> Location >> Engine Unit

Engine Unit

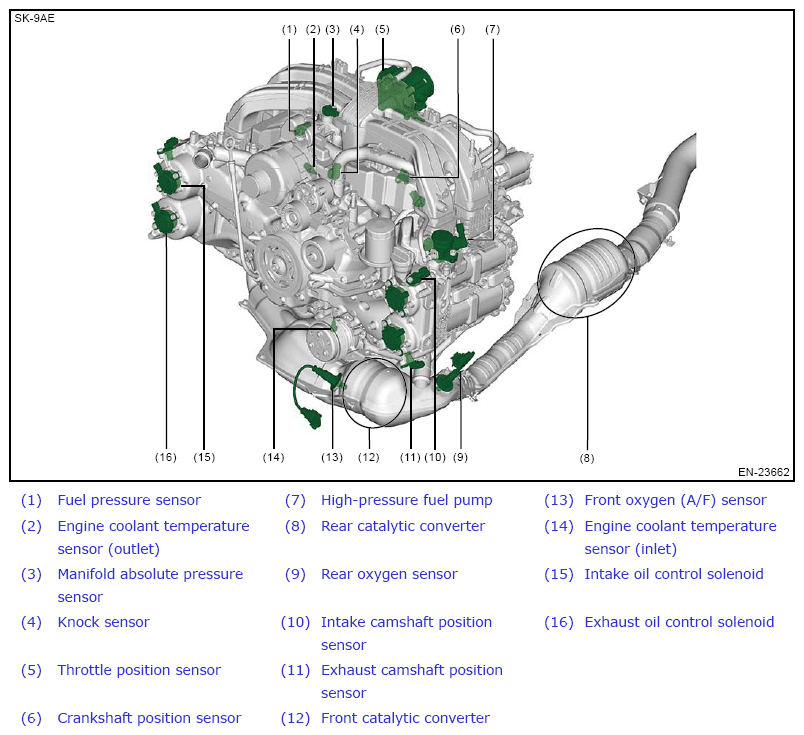

G13626700Courtesy of SUBARU OF AMERICA, INC.

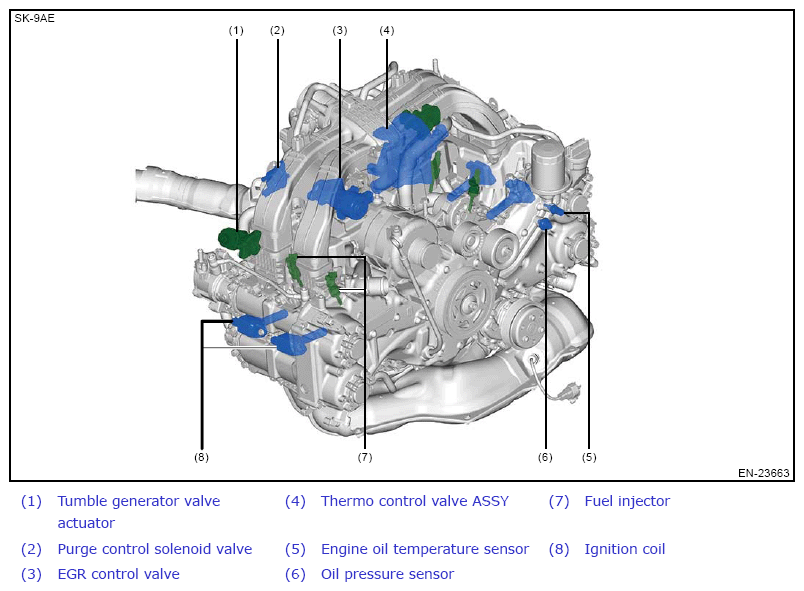

G13626701Courtesy of SUBARU OF AMERICA, INC.
