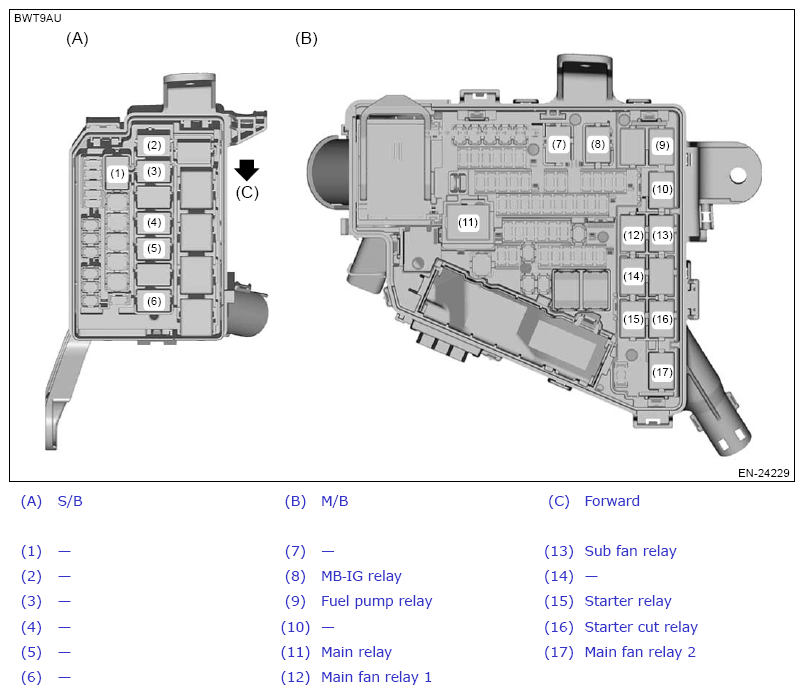

Fuse And Relay

G13626703Courtesy of SUBARU OF AMERICA, INC.
NOTE: Only shows parts required for engine diagnosis.
